Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5

Product Categories

Shenzhen Longvision Technology Co., Ltd.

Contact Now

Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5

Name: Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P12 P15 P18 P25
Brand: Longvison
Price: 589 USD

China Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5 wholesale

Place of Origin : Guangdong, China

Model Number : VL SERIES

Brand Name : Longvison

Packaging Details : wooden/carton case

Supply Ability : 3000 Square Meter/Square Meters per Month

MOQ : 1 Square Meters

Price : $-589-$1300.00/Square Meter

Certification : CE FCC UL CCC ROHS

Payment Terms : D/P, T/T, Western Union, MoneyGram

Delivery Time : 5- 8 days

Application : TV studio, Basketball, Live Events Led Display, monitor room, Advertising Video Wall Screen for Mall

Panel Size : 480*480mm

Pixel Pitch : 1.2mm 1.5mm 1.8mm 2.5mm

Material : Die-casting aluminum

Life span : LED>100000Hours

LED type : SMD1010 (3in1)/ 1212/1515/2121

Refresh rate : 3840-7680Hz

Viewing angle : V 160°/ H 140°

Package : Plywood Case

Port : Shenzhen port

Contact Now

Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5

Advantages

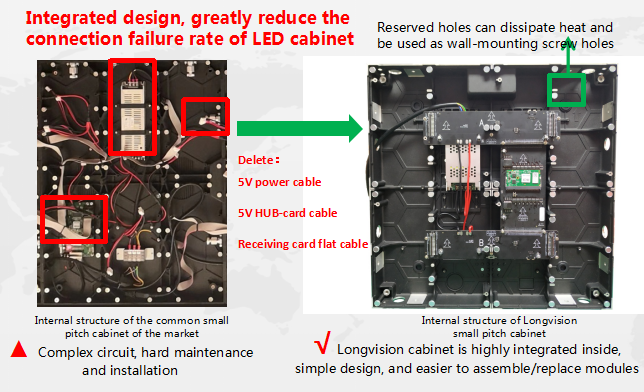

1. High Precision: all-in-one design with die-casting aluminum fashioning technology

2. 100% Front Maintenance:all components dismount from front side,

fast and easy

3. Wireless Connection: adopt hard-wired connector, support hot plug to dismounting easily

4. Fast Heat Dissipation: multi-point heat emission holes speed up efficiency of heat dissipation

Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5

Applications:

Fine pitch Indoor LED display screenhas good color performance, low energy consumption

characteristics, small spacing LED display can meet the requirements of high quality of suitable

for indoor conference room, exhibition hall, teaching and training, hotel banquet hall, indoor office

building, shopping mall propaganda screen, TV studio and so on.

Specifications
Model	VL4912	VL4915	VL4918	VL4925
Pixel Pitch(mm)	1.29mm	1.579mm	1.875mm	2.5mm
Application	Indoor UHD	Indoor UHD	Indoor UHD	Indoor UHD
Pixel Density (dots/m²)	600586	401084	284444	160000
LED Type	SMD1010	SMD1010	SMD1515	SMD2121
LED Type	SMD1010		SMD1515	SMD2121	SMD1212
Brightness (cd/m²)	200~800nit adjustable
*Module Size (mmmm)**	*240mm240mm**
*Module Resolution (dotsdots)**	*186186**	*152152**	*128128**	*9696**
*Cabinet Size (WHD)*	*48048060mm/96048060mm*
*Cabinet Resolution (dotsdots)**	*372372/744372*	*304304/608304*	*256256/512256*	*192192/384192*
Cabinet Material	Die-casting Aluminum
Cabinet Weight (±0.25kg)	26kg/m²
Viewing Angle (Deg)	H:160°/V:140°
Refresh Rate (Hz)	>3840Hz
Viewing Distance (m)	>1m	>1.5m	>2m	>2.5m
Gray Scale (bit)	14-16bit
Max./Avg. Power Consumption(m²)	600W/100W~300W
AC Power Input(V)	AC 200～240V
AC Power Frequency (Hz)	50～60Hz
Level of Protection	Front: IP41/Rear: IP20
Maintenance	100% Front Service

FAQ:

Q1. What about LED Display MOQ?

A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.

Q2. What about Longvision capacity?
A2.3000sqm per month.
8 modernized dust-free and static-free production lines,
6 new YAMAHA and PANASONIC high speed SMT machines,
2 large leadless reflow oven
250 skilled workers.

Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock
10-15 days for the new production led finished screen according to the size and quantities of your order.

Q4. How about the warranty time?
A4. Our standard is 2 years.
But you are willing to pay extra money for after sales and adopt industry top quality material,we can accept 3-5 years warranty.

Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.

Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
